执行器饱和的离散时间多智能体系统有限时域一致性控制

王巍; 王珂; 黄自鑫; 王乐君; 穆朝絮

doi:10.16383/j.aas.c240446

执行器饱和的离散时间多智能体系统有限时域一致性控制

doi: 10.16383/j.aas.c240446 cstr: 32138.14.j.aas.c240446

王巍^{1, 2,},
王珂^2,,
黄自鑫^3,,
王乐君^4,,
穆朝絮^{2, 5,}

1.
中南财经政法大学信息工程学院武汉 430073
2.
天津大学电气自动化与信息工程学院天津 300072
3.
武汉工程大学电气信息学院武汉 430205
4.
重庆邮电大学自动化学院重庆 400065
5.
安徽大学自主无人系统技术教育部工程研究中心合肥 230601

基金项目: 湖北省自然科学基金(2023AFB561)资助

详细信息

作者简介:
王巍：中南财经政法大学副教授. 2019年获得中国地质大学(武汉)控制科学与工程专业博士学位. 主要研究方向为强化学习与自适应动态规划, 多智能体系统, 有限时域最优控制. E-mail: imagef@zuel.edu.cn

王珂：天津大学助理研究员. 2023年获得天津大学控制科学与工程专业博士学位. 主要研究方向为强化学习与自适应动态规划, 微分博弈与应用, 事件触发方法. E-mail: walker_wang@tju.edu.cn

黄自鑫：武汉工程大学副教授. 2020年获得中国地质大学(武汉)控制科学与工程专业博士学位. 主要研究方向为软体机器人, 强化学习. E-mail: huangzx@wit.edu.cn

王乐君：重庆邮电大学讲师. 2022年获得中国地质大学(武汉)控制科学与工程专业博士学位. 主要研究方向为机器人智能控制技术. E-mail: wanglj@cqupt.edu.cn

穆朝絮：天津大学教授. 2012年获得东南大学控制科学与工程专业博士学位. 主要研究方向为强化学习, 自适应学习系统, 无人优化与控制. 本文通信作者. E-mail: cxmu@tju.edu.cn

计量
- 文章访问数: 182
- HTML全文浏览量: 92
- PDF下载量: 20
- 被引次数: 0
出版历程
- 收稿日期: 2024-06-30
- 录用日期: 2024-10-28
- 网络出版日期: 2024-11-28

Finite-horizon Consensus Control of Discrete-time Multi-agent Systems With Actuator Saturation

WANG Wei^{1, 2
,},
WANG Ke^2
,,
HUANG Zi-Xin^3
,,
WANG Le-Jun^4
,,
MU Chao-Xu^{2, 5
,}

1.
School of Information Engineering, Zhongnan University of Economics and Law, Wuhan 430073
2.
School of Electrical and Information Engineering, Tianjin University, Tianjin 300072
3.
School of Electrical and Information Engineering, Wuhan Institute of Technology, Wuhan 430205
4.
School of Automation, Chongqing University of Posts and Telecommunications, Chongqing 400065
5.
Engineering Research Center of Autonomous Unmanned System Technology, Ministry of Education, Anhui University, Hefei 230601

Funds: Supported by Hubei Provincial Natural Science Foundation of China (2023AFB561)

More Information

Author Bio:
WANG Wei　Associate professor at Zhongnan University of Economics and Law. He received his Ph.D. degree in control science and engineering from China University of Geosciences (Wuhan) in 2019. His research interest covers reinforcement learning and adaptive dynamic programming, multi-agent systems and finite-horizon optimal control

WANG Ke　Assistant researcher at Tianjin University. He received his Ph.D. degree in control science and engineering from Tianjin University in 2023. His research interest covers reinforcement learning and adaptive dynamic programming, differential games and applications, and event-triggered methods

HUANG Zi-Xin　Associate professor at Wuhan Institute of Technology. He received his Ph.D. degree in control science and engineering from China University of Geosciences (Wuhan) in 2020. His research interest covers soft robotics and reinforcement learning

WANG Le-Jun　Lecturer at Chongqing University of Posts and Telecommunications. He received his Ph.D. degree in control science and engineering from China University of Geosciences (Wuhan) in 2022. His main research interest is intelligent control technology of robot

MU Chao-Xu　Professor at Tianjin University. She received her Ph.D. degree in control science and engineering from Southeast University in 2012. Her research interest covers reinforcement learning, adaptive learning systems and unmanned optimization and control. Corresponding author of this paper

摘要

摘要: 针对执行器饱和的离散时间线性多智能体系统(Multi-agent systems, MASs)有限时域一致性控制问题, 将低增益反馈(Low gain feedback, LGF)方法与Q学习相结合, 提出采用后向时间迭代的模型无关控制方法. 首先, 将执行器饱和的有限时域一致性控制问题的求解转化为执行器饱和的单智能体有限时域最优控制问题的求解, 并证明可以通过求解修正的时变黎卡提方程 (Modified time-varying Riccati equation, MTVRE)实现有限时域最优控制. 随后, 引入时变参数化Q函数(Time-varying parameterized Q-function, TVPQF), 并提出基于Q学习的模型无关后向时间迭代算法, 可以更新低增益参数, 同时实现逼近求解MTVRE. 另外, 证明所提迭代求解算法得到的LGF控制矩阵收敛于MTVRE的最优解, 也可以实现全局有限时域一致性控制. 最后, 通过仿真实验结果验证了该方法的有效性.
- 有限时域一致性控制 /
- 执行器饱和 /
- Q函数 /
- 模型无关 /
- 多智能体系统
Abstract: A model-free control method using backward-in-time iteration by combining the low gain feedback (LGF) method with Q-learning is proposed for the finite-horizon consensus control problem for discrete-time linear multi-agent systems (MASs) with actuator saturation. First, the solution of the finite-horizon consensus control problem with actuator saturation is transformed into the solution of the finite-horizon optimal control problem of single agent with actuator saturation, and it is proved that the finite-horizon optimal control can be realized by solving the modified time-varying Riccati equation (MTVRE). Then, a time-varying parameterized Q-function (TVQPF) is introduced, and a model-free backward-in-time iteration algorithm based on Q-learning is proposed to update the low gain parameter and simultaneously approximate the solution of the MTVRE. In addition, it is demonstrated that the LGF control matrix obtained by the proposed iterative solution algorithm converges to the optimal solution of the MTVRE, and the global finite-horizon consensus control can also be realized. Finally, the effectiveness of the proposed method is verified by simulation results.
- Finite-horizon consensus control /
- actuator saturation /
- Q-function /
- model-free /
- multi-agent systems (MASs)

HTML全文

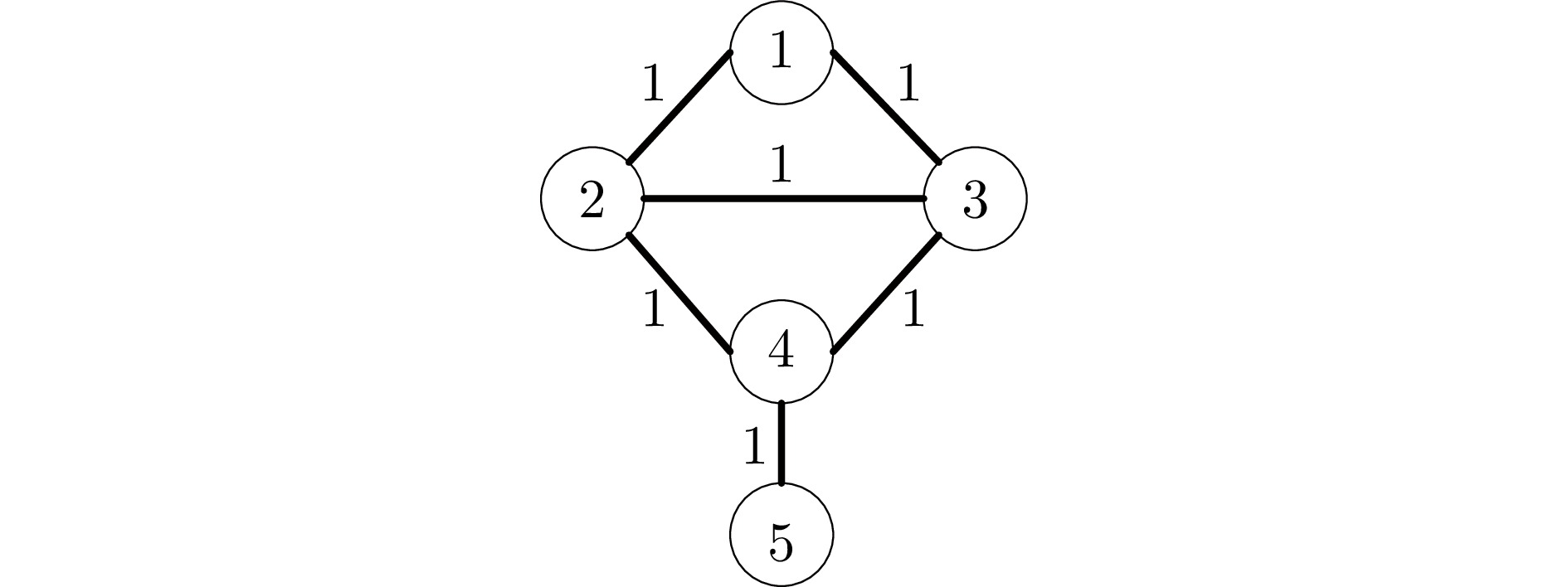

图 1 仿真1中MASs的通信拓扑

Fig. 1 MASs communication topology in simulation 1

下载: 全尺寸图片幻灯片

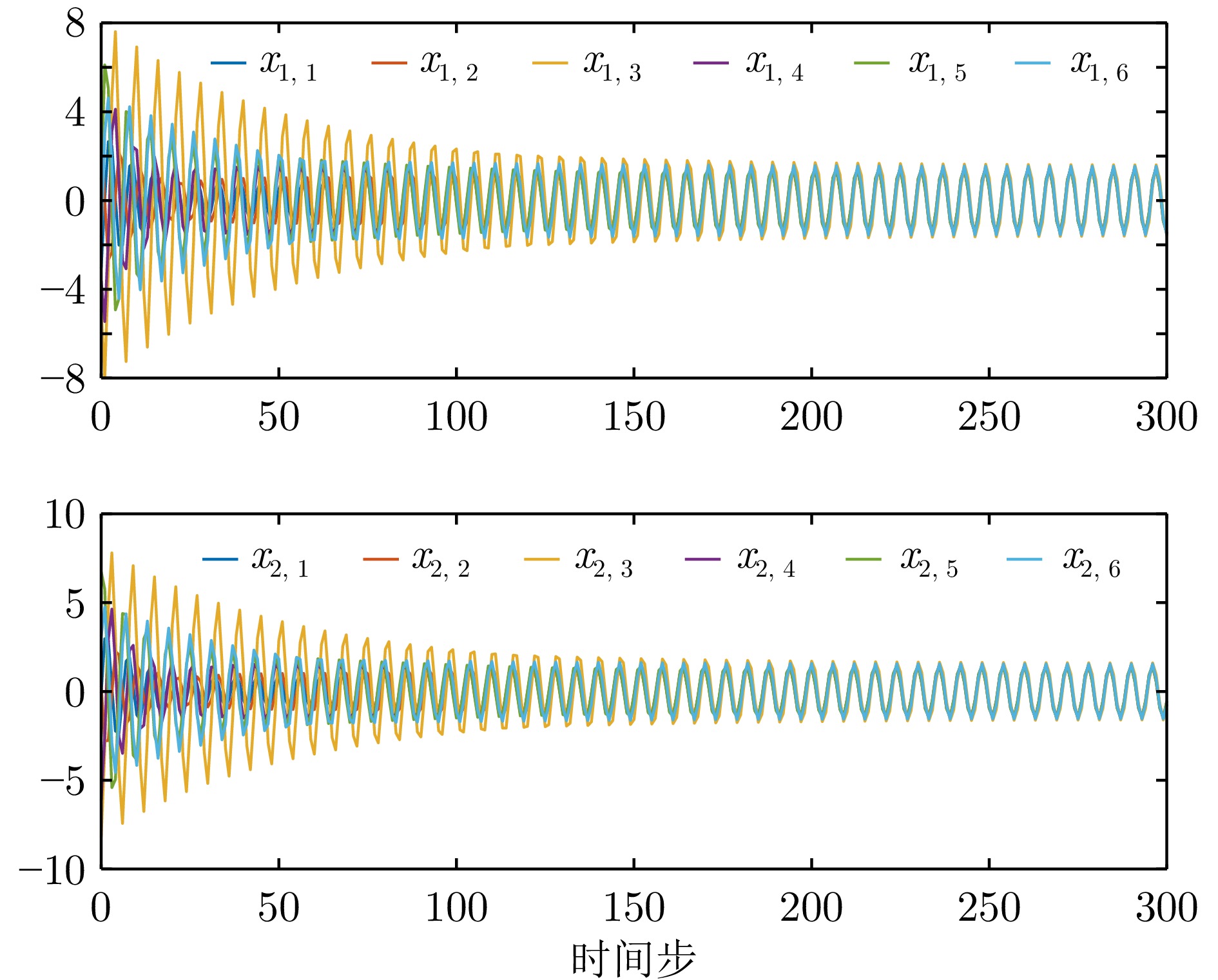

图 2 例1中智能体的状态

Fig. 2 The states of agents in example 1

下载: 全尺寸图片幻灯片

图 3 例1中智能体的控制输入

Fig. 3 The control inputs of agents in example 1

下载: 全尺寸图片幻灯片

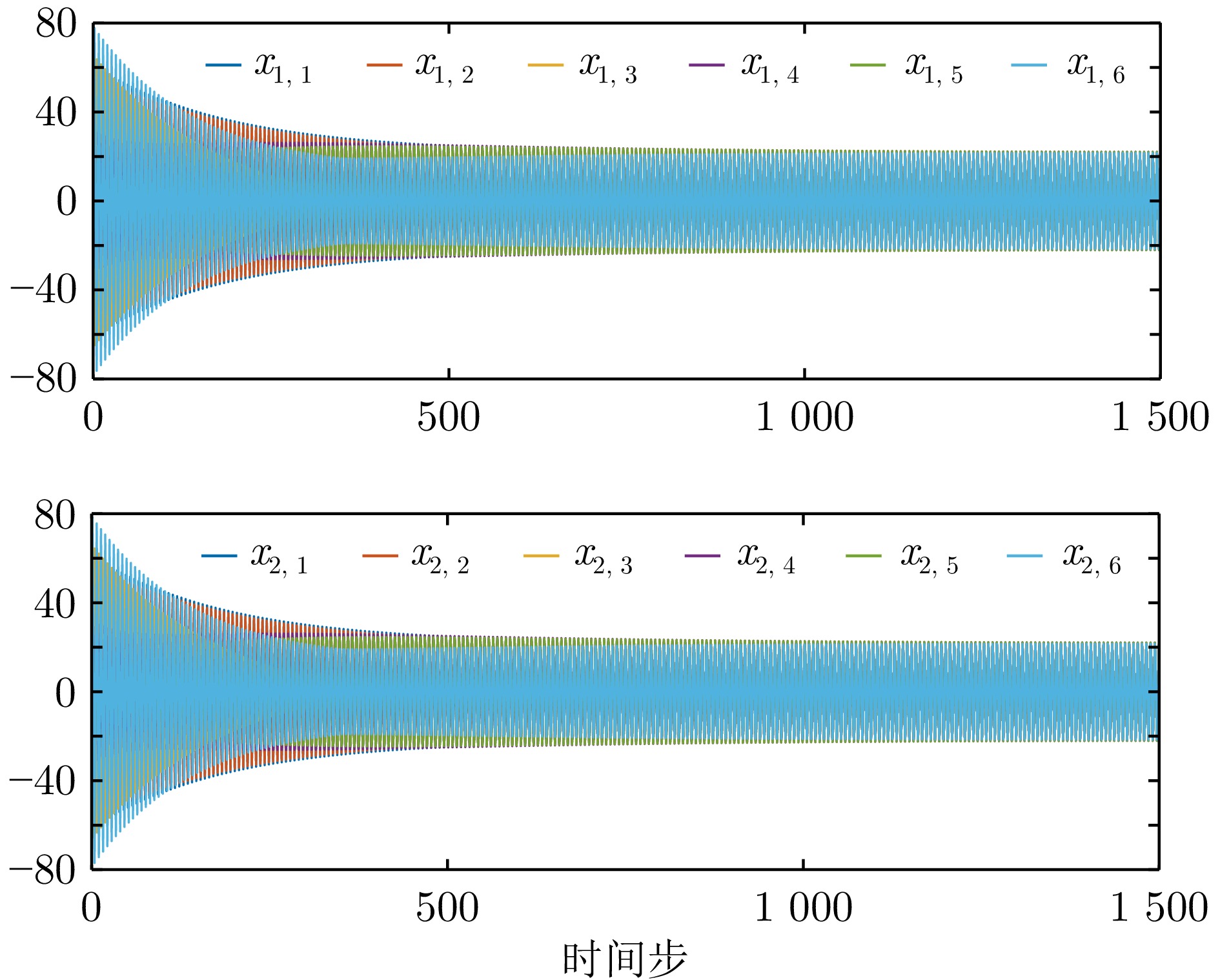

图 4 例2中智能体的状态

Fig. 4 The states of agents in example 2

下载: 全尺寸图片幻灯片

图 5 例2中智能体的控制输入

Fig. 5 The control inputs of agents in example 2

下载: 全尺寸图片幻灯片

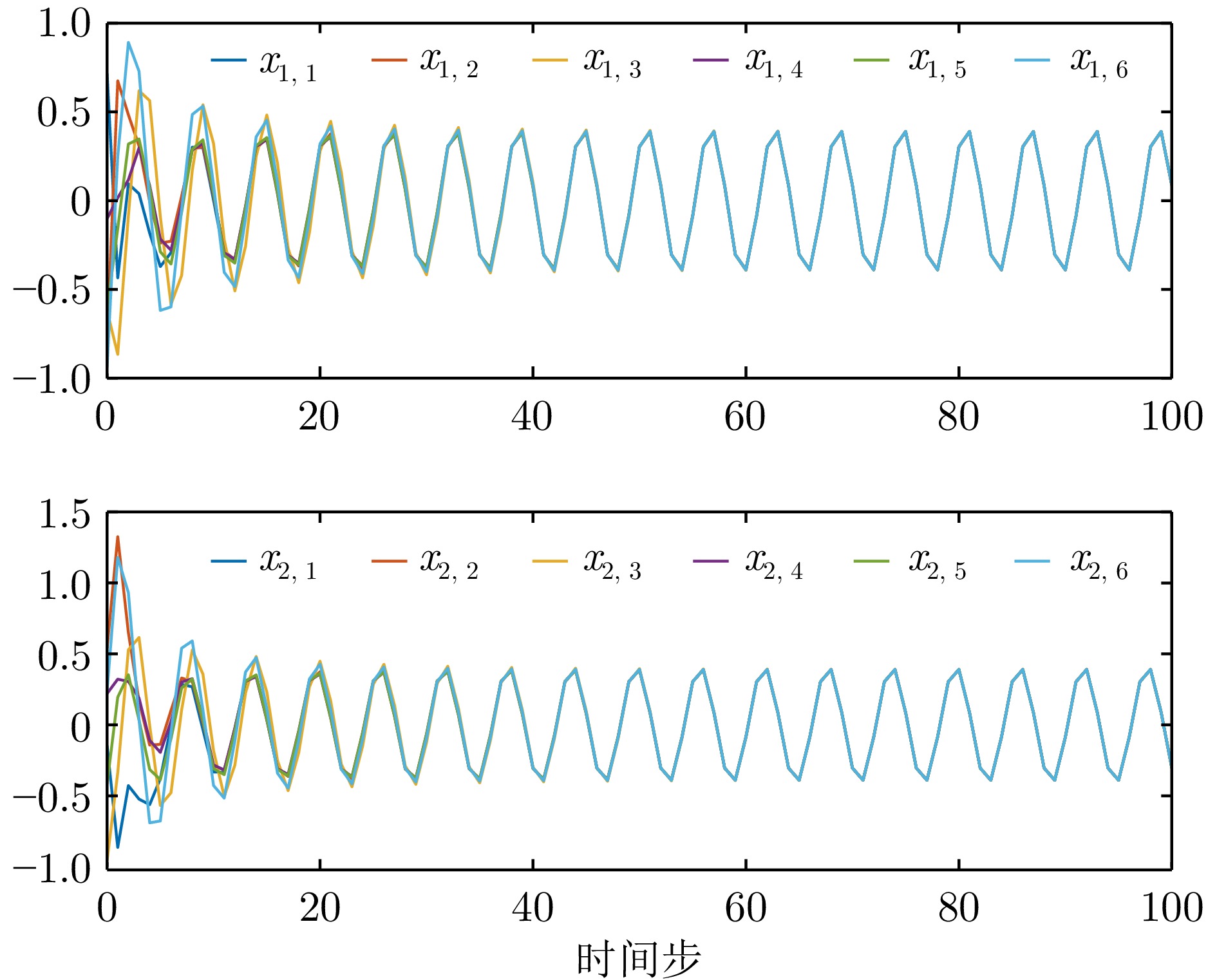

图 6 例3中智能体的状态

Fig. 6 The states of agents in example 3

下载: 全尺寸图片幻灯片

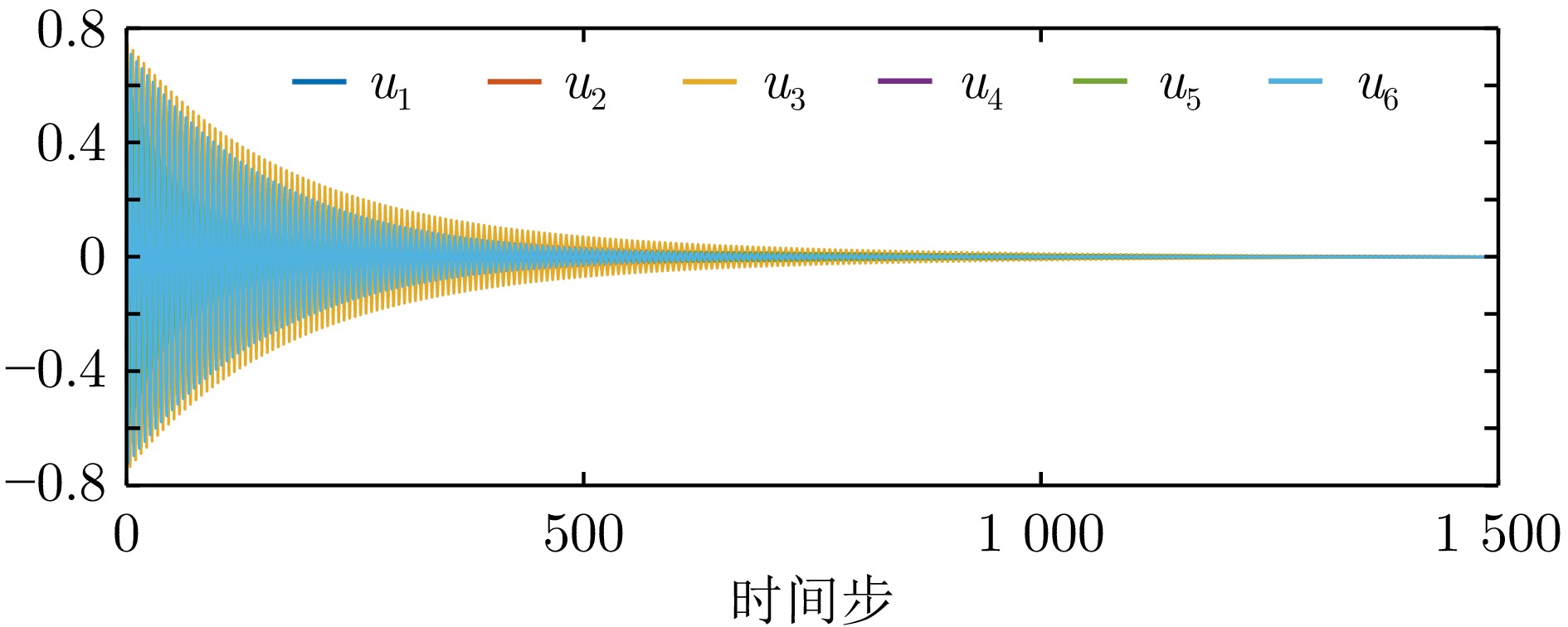

图 7 例3中智能体的控制输入

Fig. 7 The control inputs of agents in example 3

下载: 全尺寸图片幻灯片

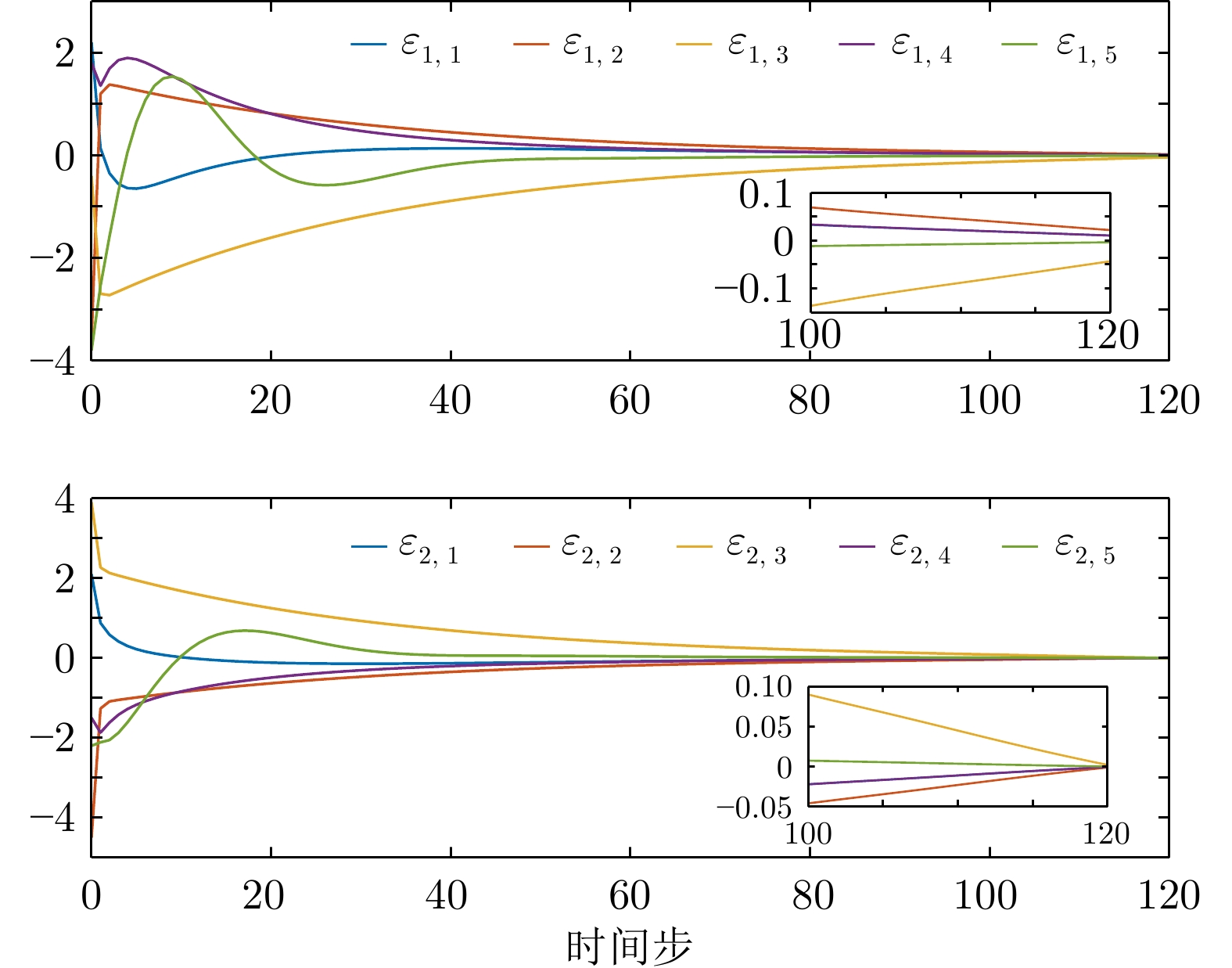

图 11 例2中有限时域方法获得的一致性误差

Fig. 11 Consensus errors obtained by finite-horizon method in example 2

下载: 全尺寸图片幻灯片

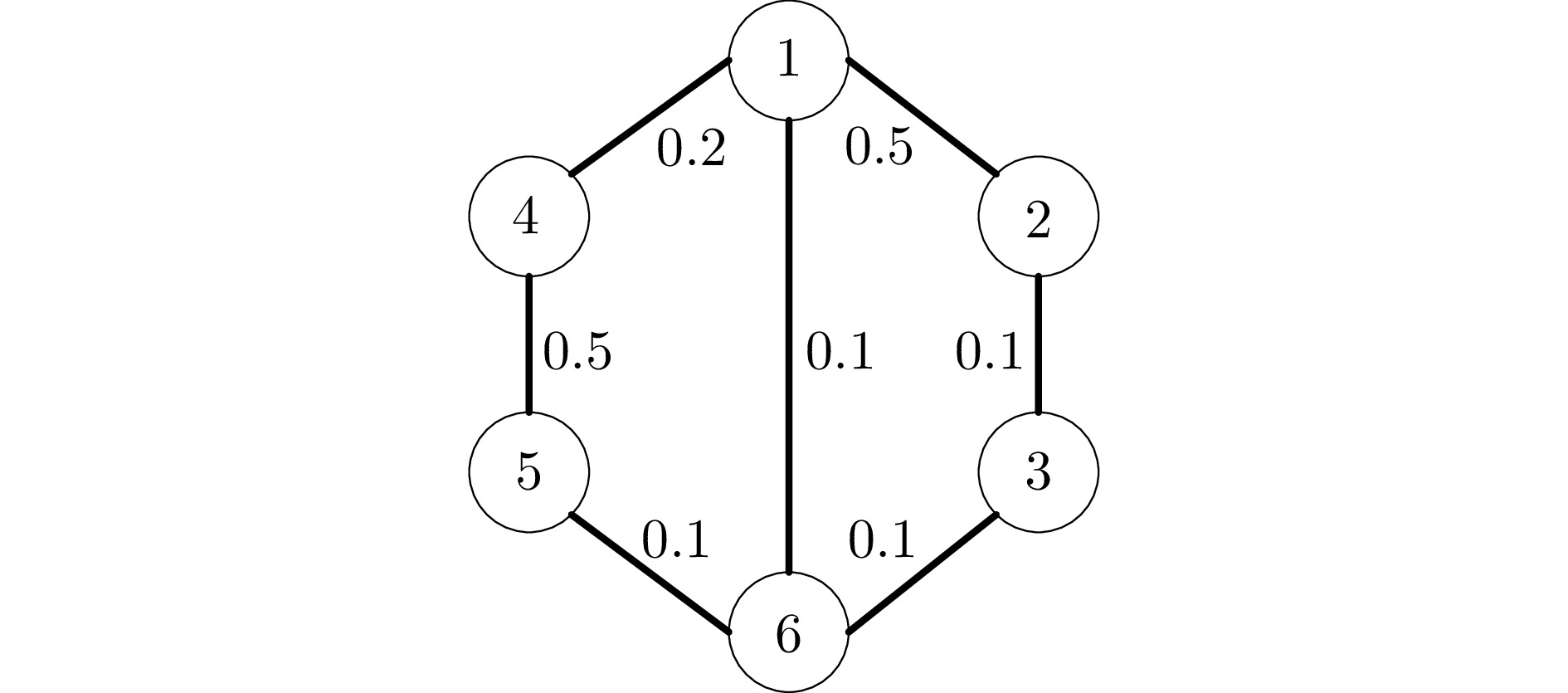

图 8 仿真2中MASs的通信拓扑

Fig. 8 MASs communication topology in simulation 2

下载: 全尺寸图片幻灯片

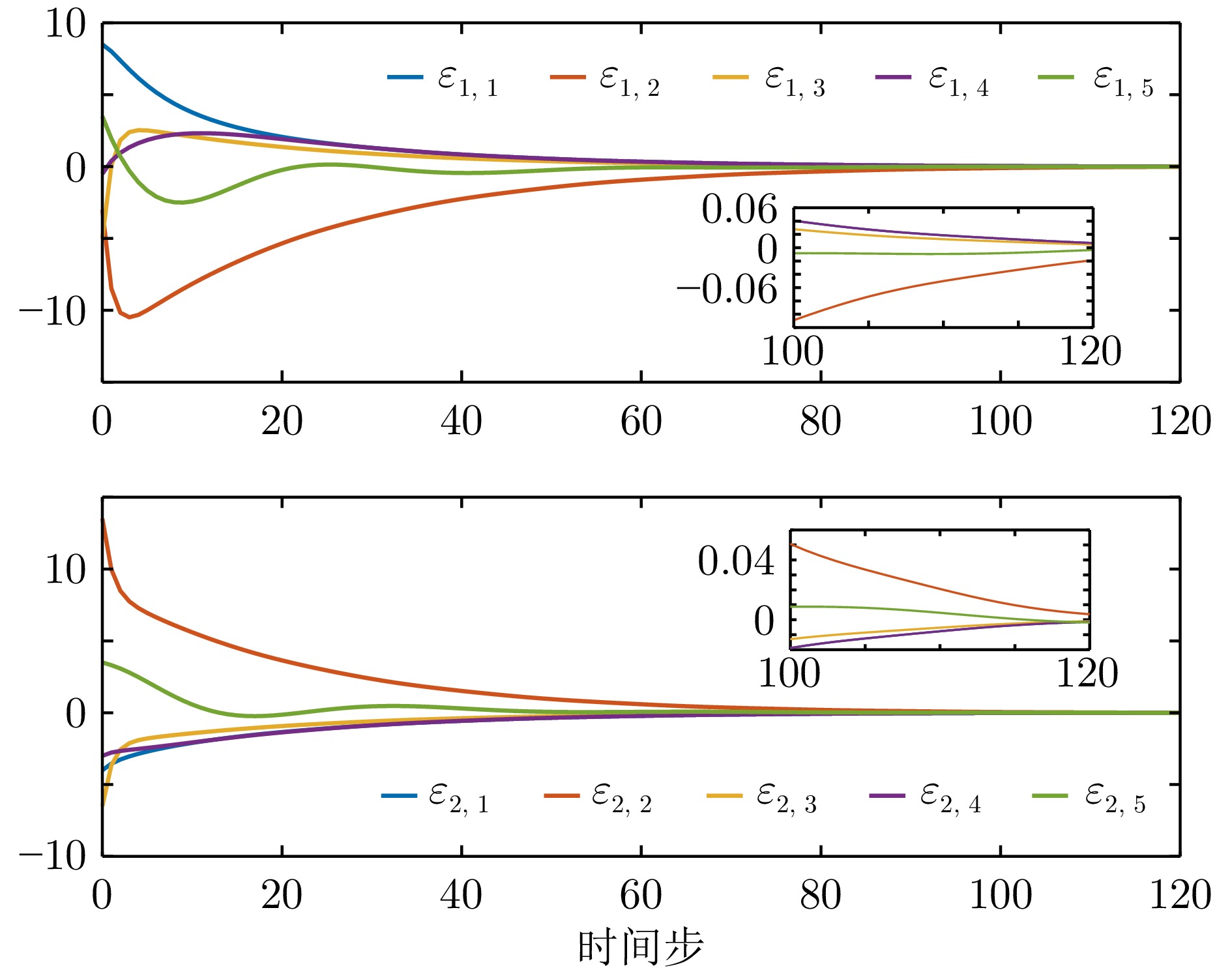

图 9 例1中有限时域方法获得的一致性误差

Fig. 9 Consensus errors obtained by finite-horizon method in example 1

下载: 全尺寸图片幻灯片

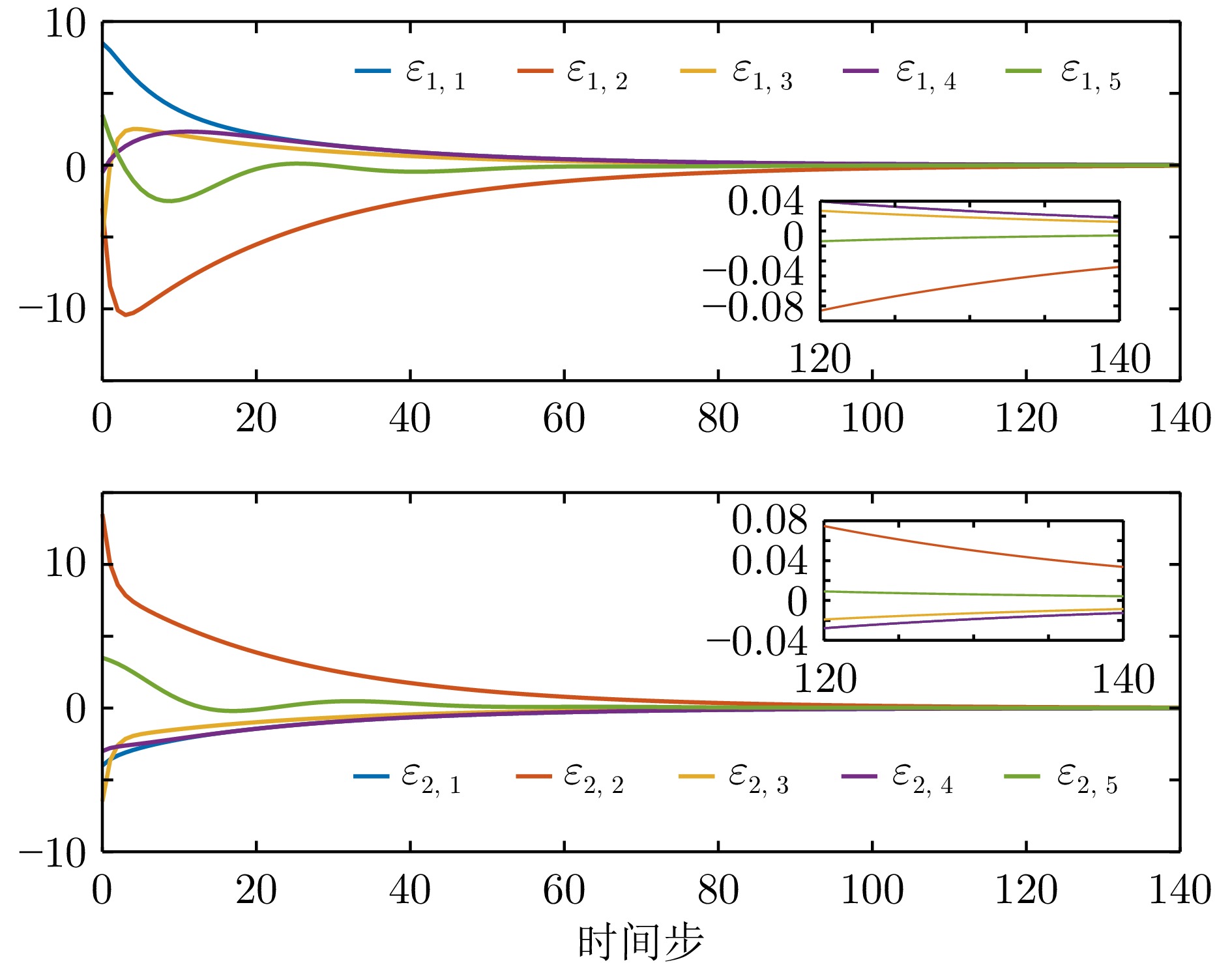

图 10 例1中无限时域方法获得的一致性误差

Fig. 10 Consensus errors obtained by infinite-horizon method in example 1

下载: 全尺寸图片幻灯片

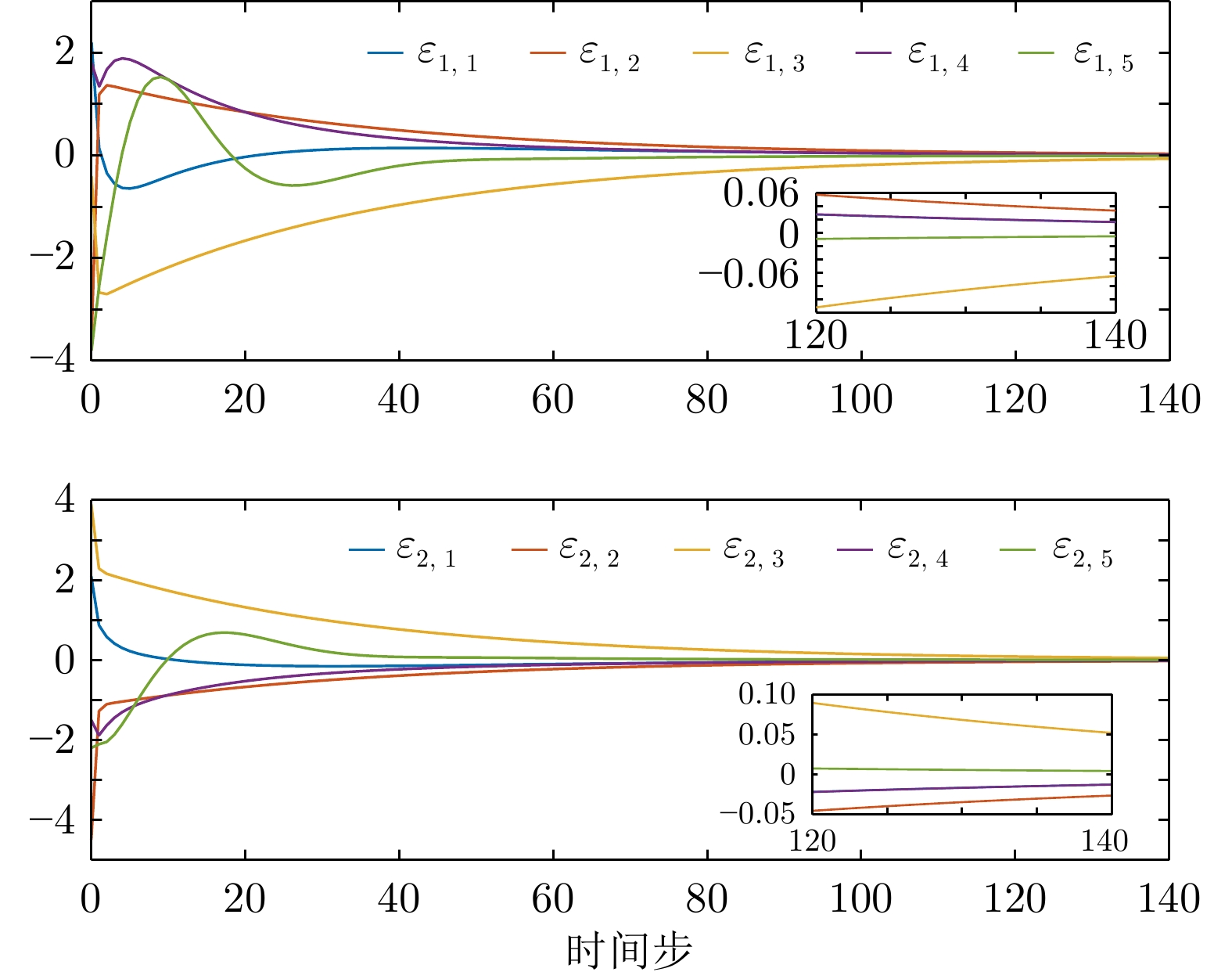

图 12 例2中无限时域方法获得的一致性误差

Fig. 12 Consensus errors obtained by infinite-horizon method in example 2

下载: 全尺寸图片幻灯片

表 1 对比实验评价指标

Table 1 Evaluation indices of comparison experiments

$100\le k \le 120$	${\mathrm{IAE}}$	${\mathrm{MSE}}$
例1−有限时域方法	0.637 7	0.005 4
例1−无限时域方法	10.264 9	2.116 9
例2−有限时域方法	1.074 8	0.014 7
例2−无限时域方法	5.186 9	0.510 9

下载: 导出CSV

表 2 例1中一致性误差调节时间

Table 2 Consensus error setting time in example 1

例1−调节时间	有限时域方法	无限时域方法
智能体1	109	137
智能体2	119	161
智能体3	104	127
智能体4	109	137
智能体5	90	110

下载: 导出CSV

表 3 例2中一致性误差调节时间

Table 3 Consensus error setting time in example 2

例2−调节时间	有限时域方法	无限时域方法
智能体1	108	131
智能体2	116	158
智能体3	120	183
智能体4	108	131
智能体5	84	93

下载: 导出CSV
