Autonomous Perception-Planning-Control Strategy Based on Deep Reinforcement Learning for Unmanned Aerial Vehicles
-
摘要: 近年来, 随着深度强化学习方法快速发展, 其在无人机自主导航上的应用也受到越来越广泛地关注. 然而, 面对复杂未知的环境, 现存的基于深度强化学习的无人机自主导航算法常受限于对全局信息的依赖和特定训练环境的约束, 极大地限制了其在各种场景当中的应用潜力. 为了解决上述问题, 提出了多尺度输入用于平衡感受野与状态维度, 以及截断操作来使智能体能够在扩张后的环境中运行. 此外, 构建了自主感知-规划-控制架构, 赋予无人机在多样复杂环境中自主导航的能力.Abstract: In recent years, with the rapid development of deep reinforcement learning (DRL) methods, their application in the field of unmanned aerial vehicle (UAV) autonomous navigation has attracted increasing attention. However, when facing complex and unknown environments, existing DRL-based UAV autonomous navigation algorithms are often limited by their dependence on global information and the constraints of specific training environments, greatly limiting their potential for application in various scenarios. To address these issues, multi-scale input is proposed to balance the receptive field and the state dimension, and truncation operation is proposed to enable the agent to operate in the expanded environment. In addition, the autonomous perception-planning-control architecture is constructed to give the UAV the ability to navigate autonomously in diverse and complex environments.
-

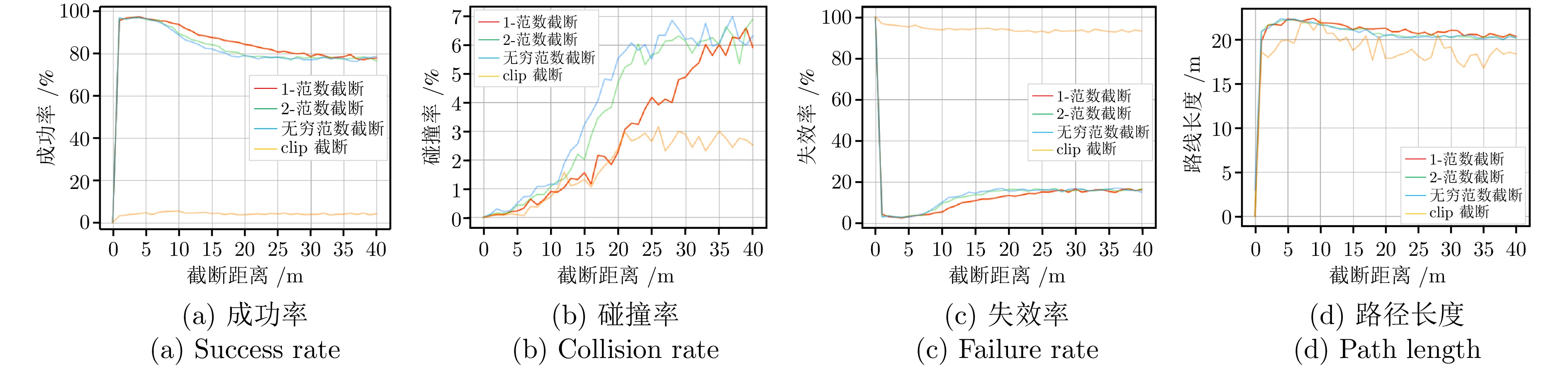

图 7 不同截断参数下导航性能图
Fig. 7 Navigation performance charts for different truncation parameters

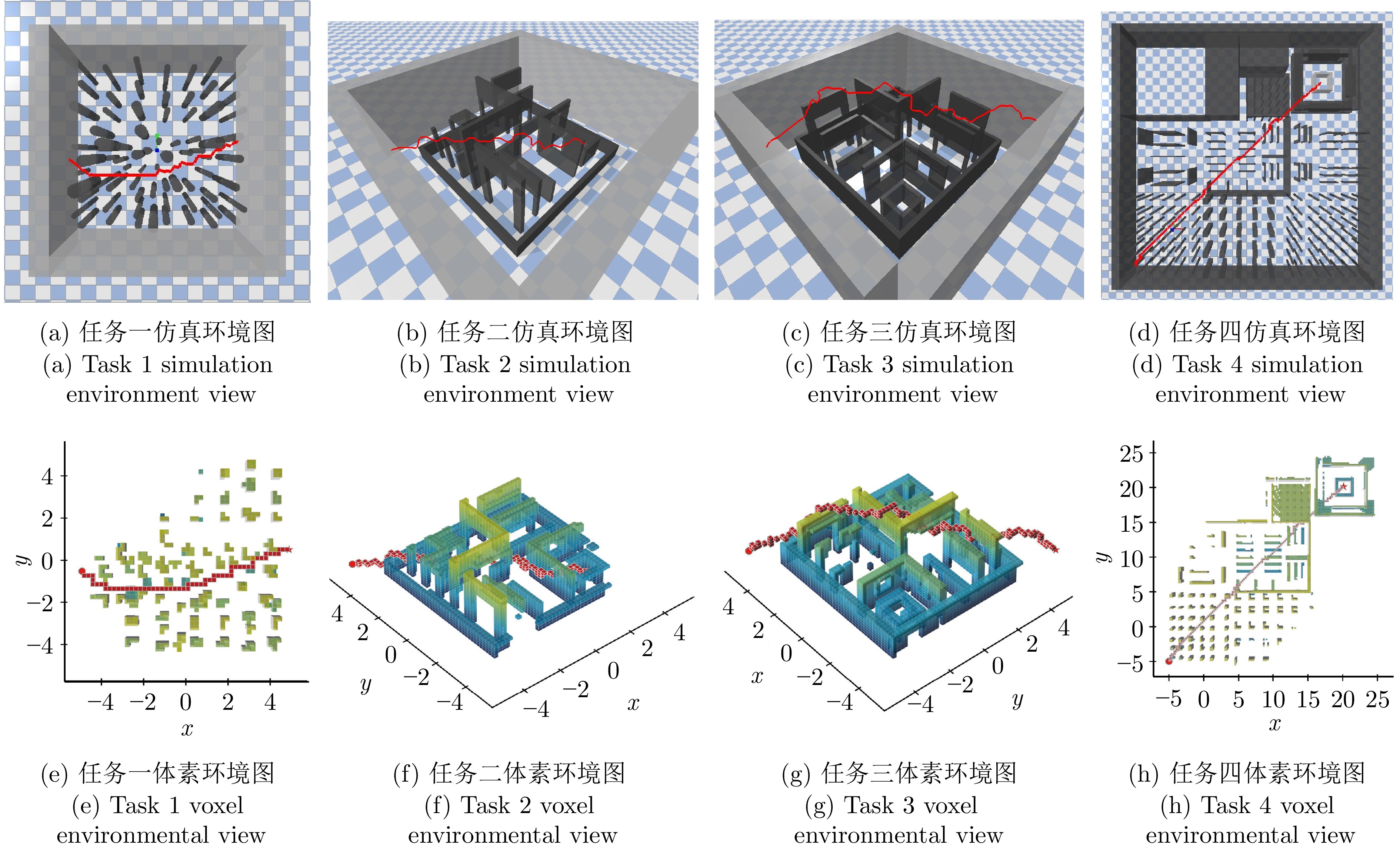

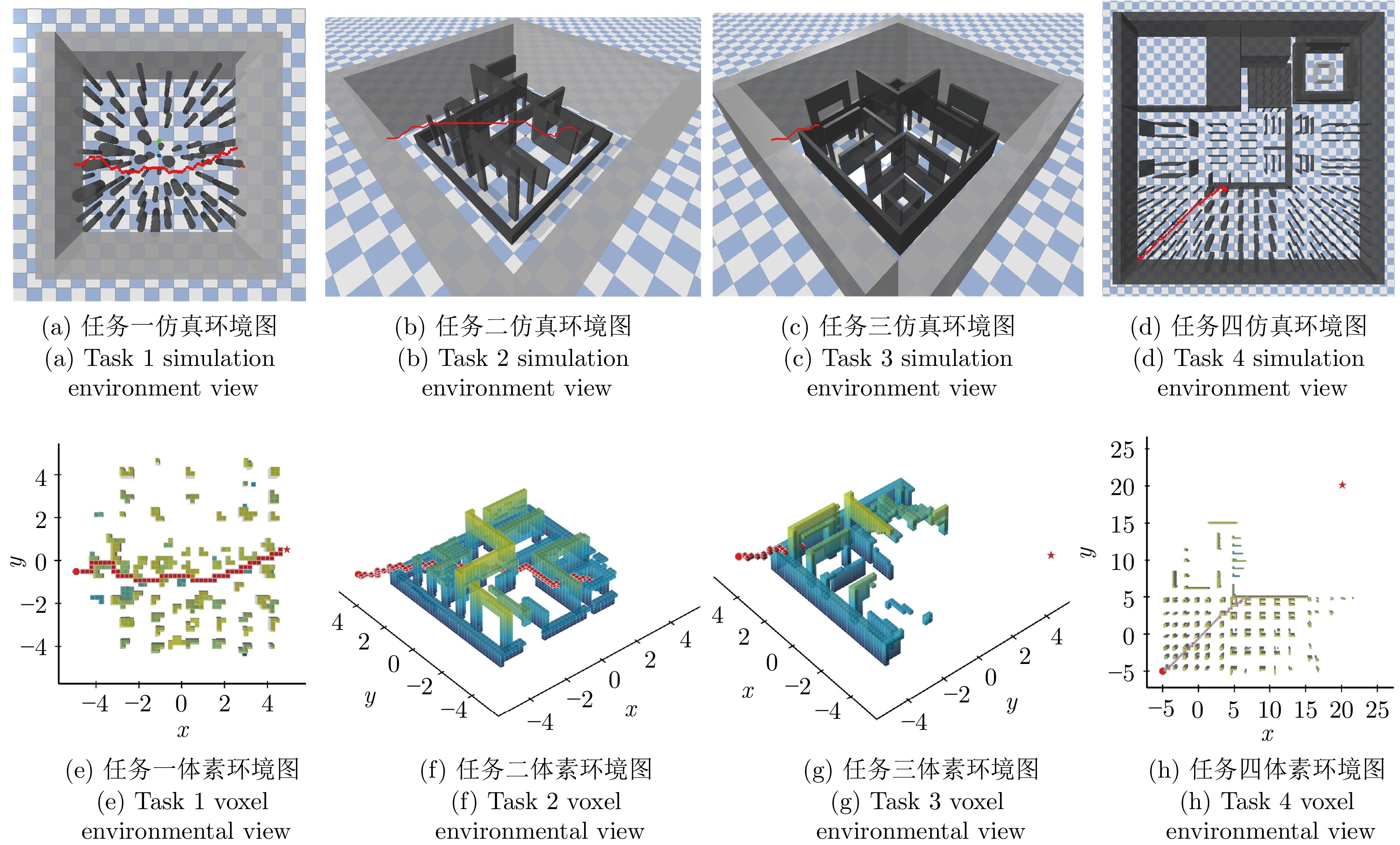

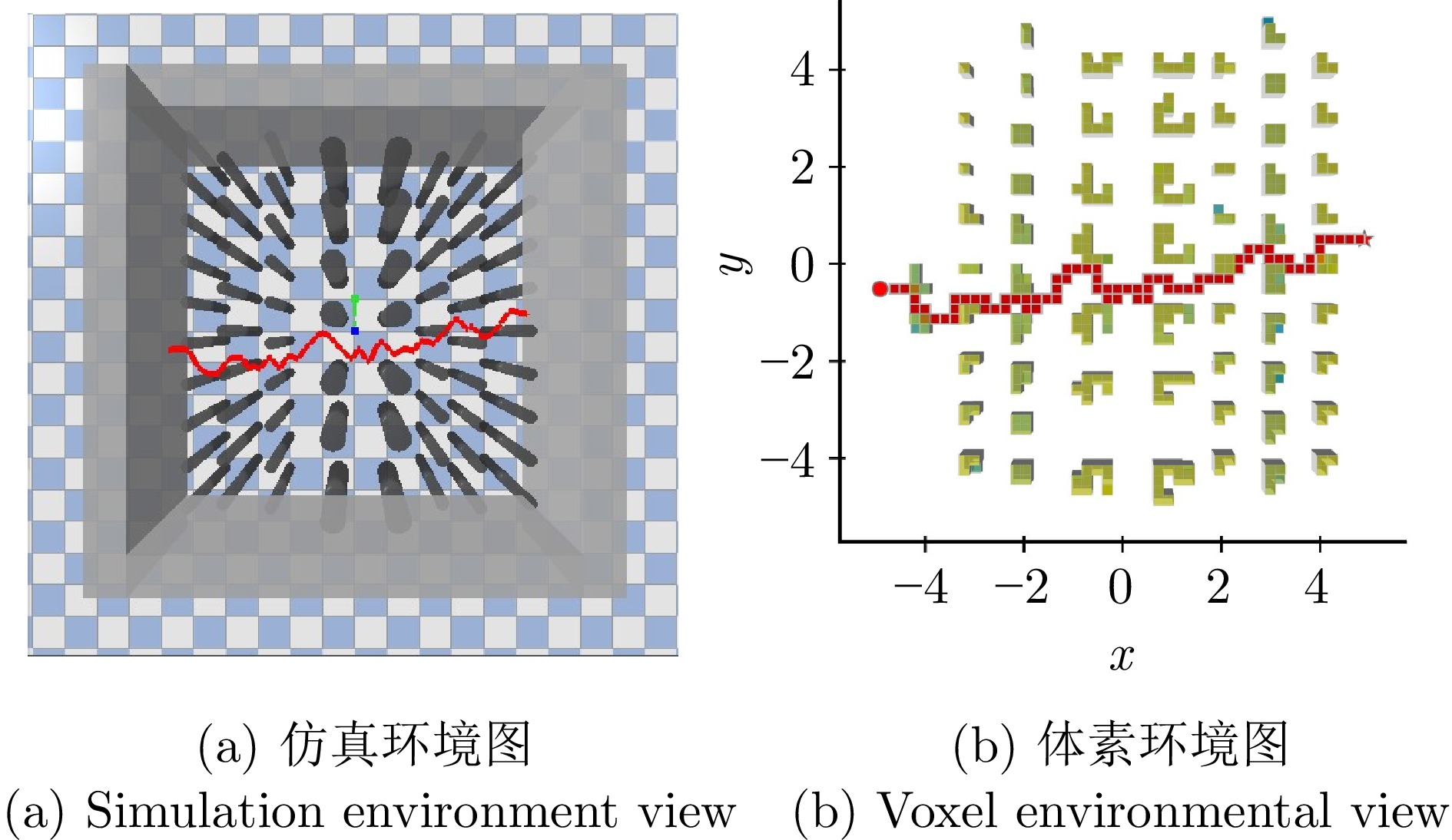

图 9 基于深度强化学习的自主导航技术导航效果展示图
Fig. 9 A demonstration of the navigation performance based on deep reinforcement learning-based autonomous navigation technology

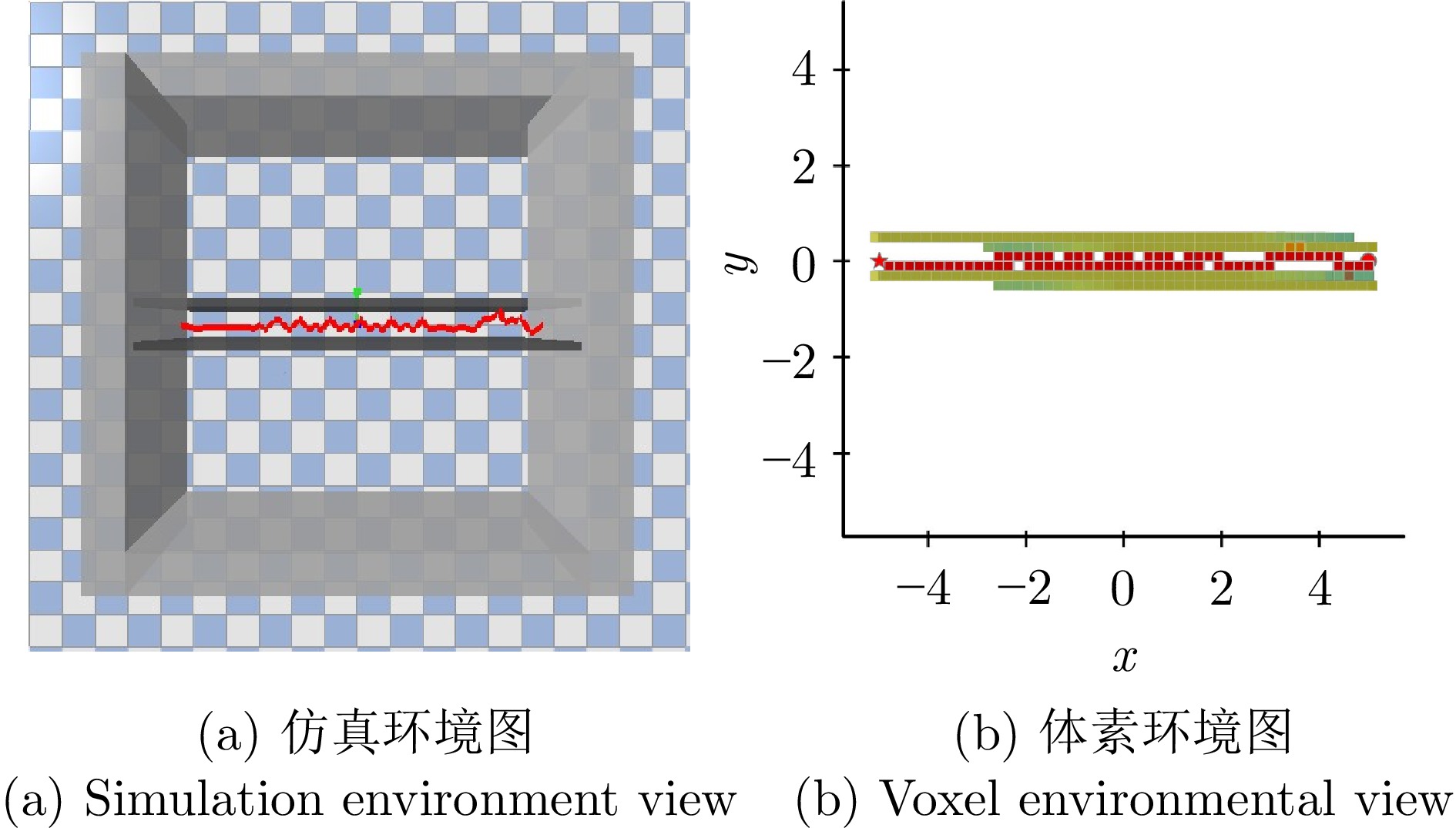

图 10 基于A*算法的自主导航技术导航效果展示图
Fig. 10 A* algorithm-based autonomous navigation technology demonstration map for navigation effect

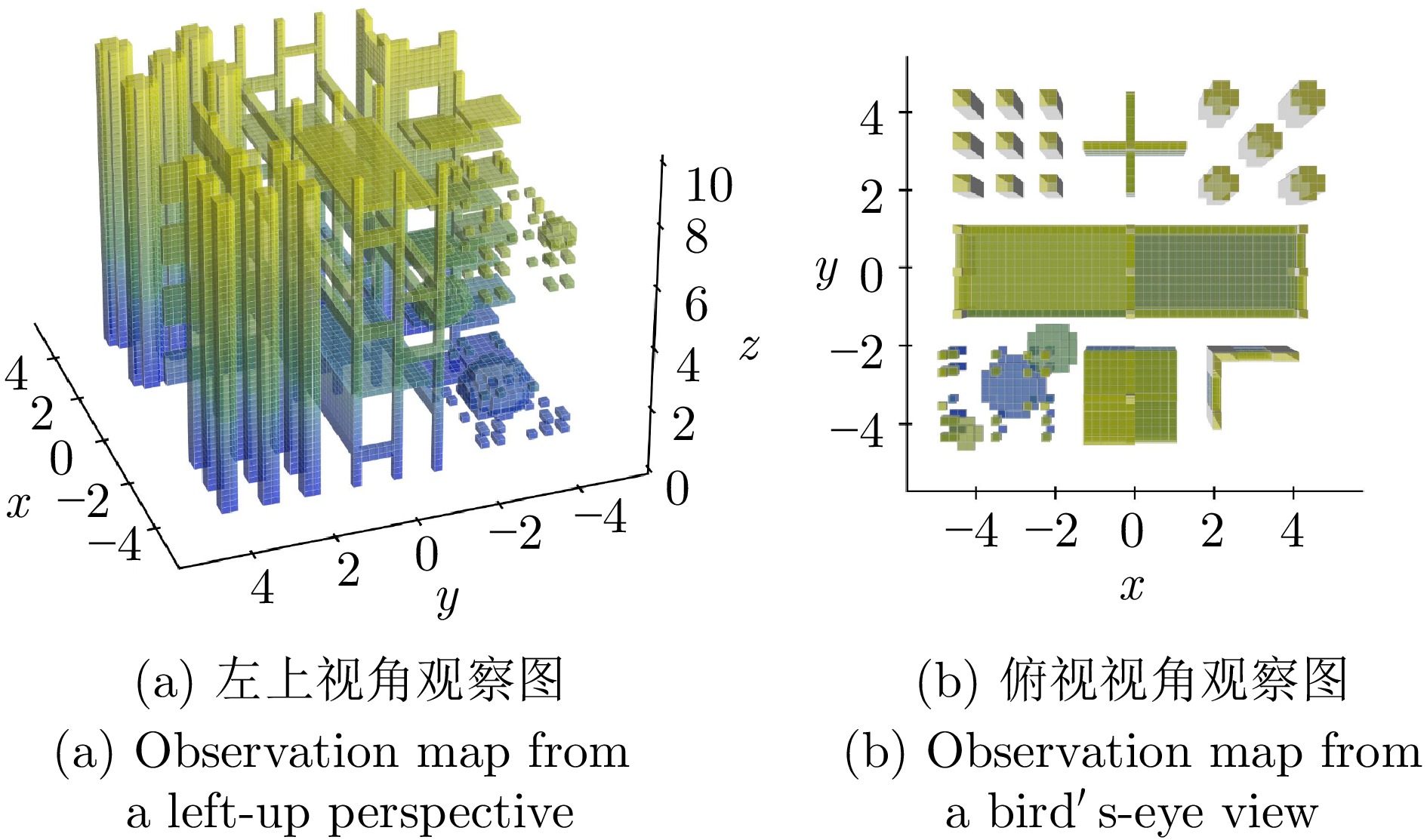

表 1 Double DQN算法伪代码
Table 1 Pseudocode for Double DQN algorithm
算法1. 用于无人机路径规划的Double DQN 输入. 环境$\tilde X$, 初始化网络参数α 1: 对于每一轮训练episode = 1, 2,... 执行以下代码: 2: 初始化无人机的出发位置${\tilde p_\text{init}} \sim U({\tilde M_\text{free}})$ 3: 初始化无人机的目标位置${\tilde p_\text{d}} \sim U({\tilde M_\text{free}}/{\tilde p_\text{init}})$ 4: 对于每一刻时间 = 0, 1,... 执行以下代码: 5: 在概率$\varepsilon $下, 均匀随机选择动作at = U(A) 6: 否则, 选择动作at = arg max Q(st, a) 7: 执行动作at, 同时获取下一时刻状态和奖励st + 1, rt 8: 将本次轨迹(st, at, st + 1, rt)放入经验回放缓冲区D 9: 随机均匀采集N条轨迹(st, at, st + 1, rt), 满足1 ≤ i ≤ N 10: 对于每一条轨迹, 使用式(7)的损失函数更新主网络参数α 11: 每C次训练步数使用主网络参数更新目标网络参数$\hat \alpha \leftarrow \alpha $
下载: 导出CSV

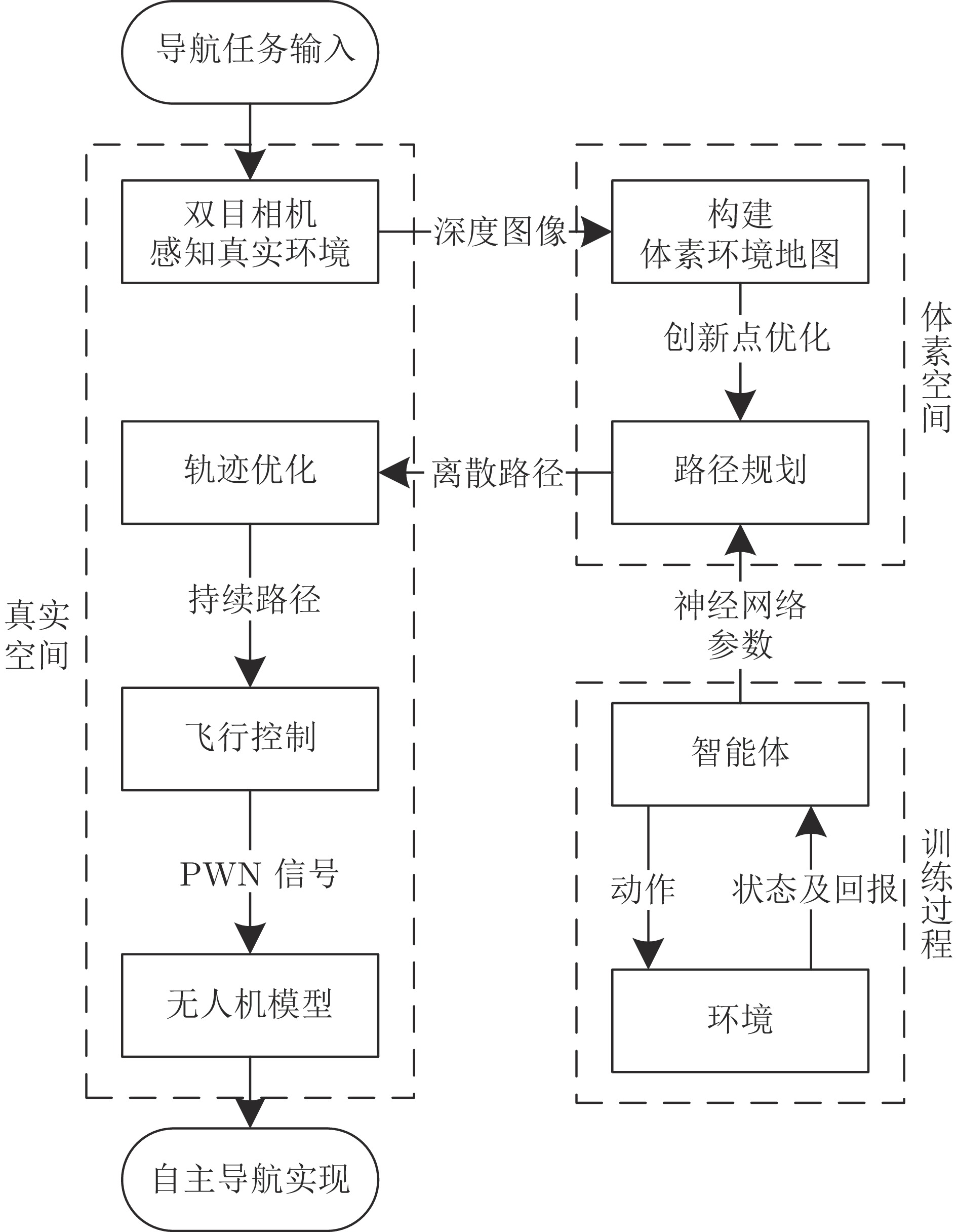

表 2 无人机自主导航技术伪代码
Table 2 Pseudocode for Drone Autonomous Navigation Technology
算法2. 无人机自主导航技术 输入. 环境$X$, 网络参数$\alpha $, 无人机初始位置${p_\text{init}}$, 期望位置${p_\text{d}}$ 1: 初始化感知、规划和飞行控制时间${t^\text{sense}}$, ${t^\text{plan}}$和${t^\text{control}}$为零 2: 初始化体素环境空间$\tilde X$为无障碍物空间 3: 判定无人机未到达目标位置时, 即$\parallel p - {p_d}{\parallel _2}$, 执行以下代码: 4: 执行路径规划及轨迹优化模块: 5: 初始化离散路径点$\tilde P = \left[ {{{\tilde p}_0}} \right]$, 初始位置${\tilde p_0} = \rm{floor}(p/2\tilde d)$ 6: 对于每一刻时间$t = 0,\; 1,\; \ldots ,\; x - 1$, 执行以下代码: 7: 利用网络参数$\alpha $选择动作${a_t} = \arg \max Q({s_t},\; a)$ 8: 在体素环境中执行动作${a_t}$ 9: 更新离散路径点$\tilde P.\text{append}({\tilde p_{t + 1}})$ 10: 使用式(13)进行飞行轨迹优化$\Gamma $ 11: 更新飞行控制时间为零, 即${t^\text{control}} = 0$ 12: 更新规划时间${t^\text{plan}} + = \Delta t$ 13: 当判定满足环境感知条件$\text{mod} ({T^\text{sense}},\; {t^\text{sense}}) = = 0$时: 14: 获取新的障碍物环境${\tilde M'_\text{obs}}$ 15: 当判定原感知障碍物环境与规划路径冲突${\tilde M_{{\rm{obs}}}} \cap \tilde P \ne \emptyset $时: 16: 设定规划时间为零, 即${t^\text{plan}} = 0$ 17: 更新障碍物环境${\tilde M_\text{obs}} = {\tilde M_{obs}} \cup {\tilde M'_{obs}}$ 18: 更新感知时间${t^\text{sense}} + = \Delta t$ 19: 当判定满足轨迹优化条件${t^\text{control}} = = 0$时: 20: 重新进行飞行轨迹优化$\Gamma $ 21: 产生PWM信号 22: 更新飞行控制时间${t^\text{control}} + = \Delta t$
下载: 导出CSV

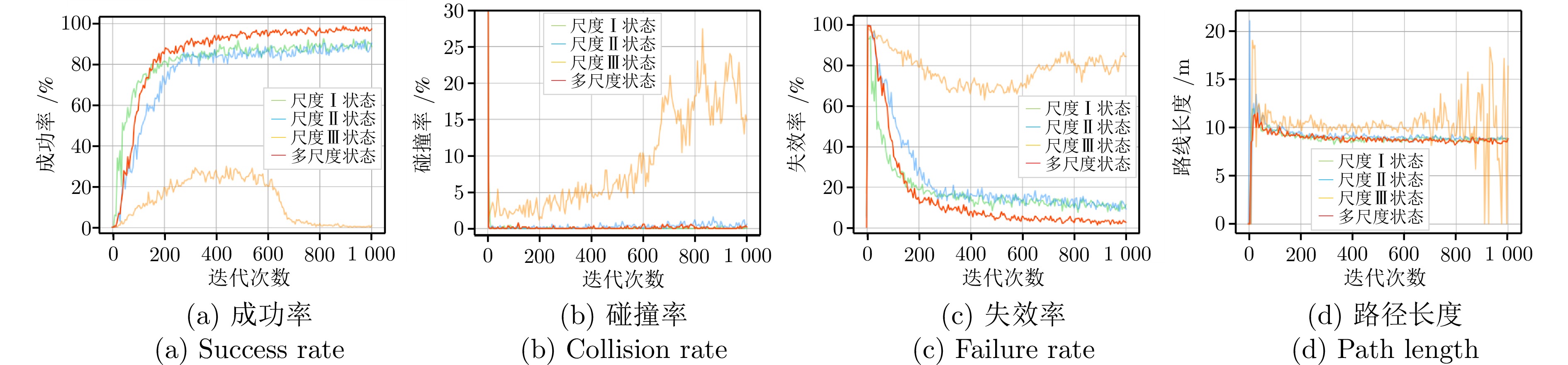

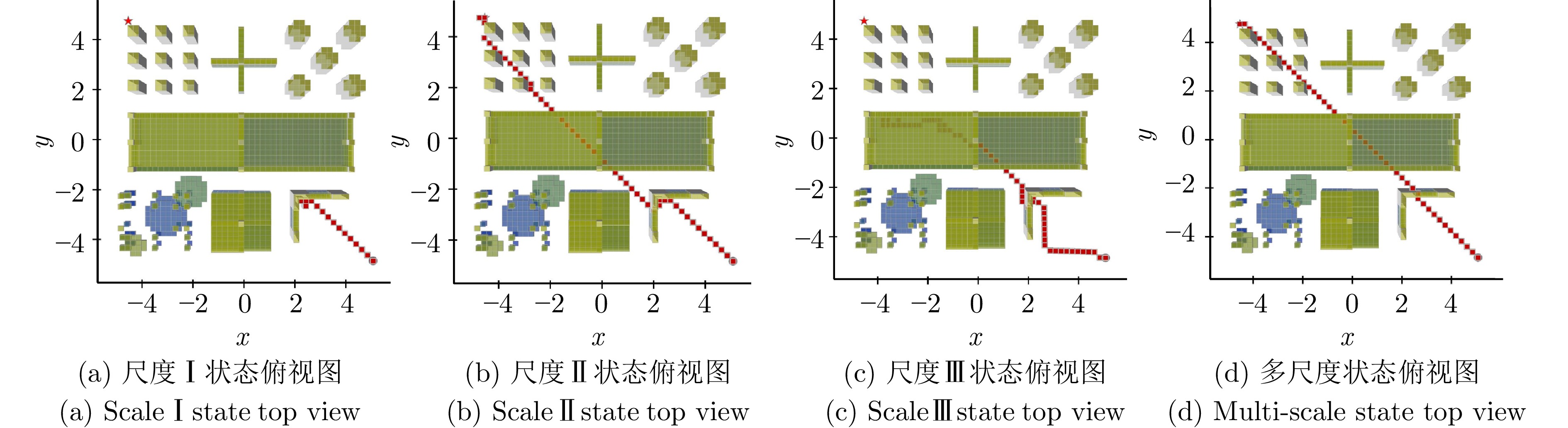

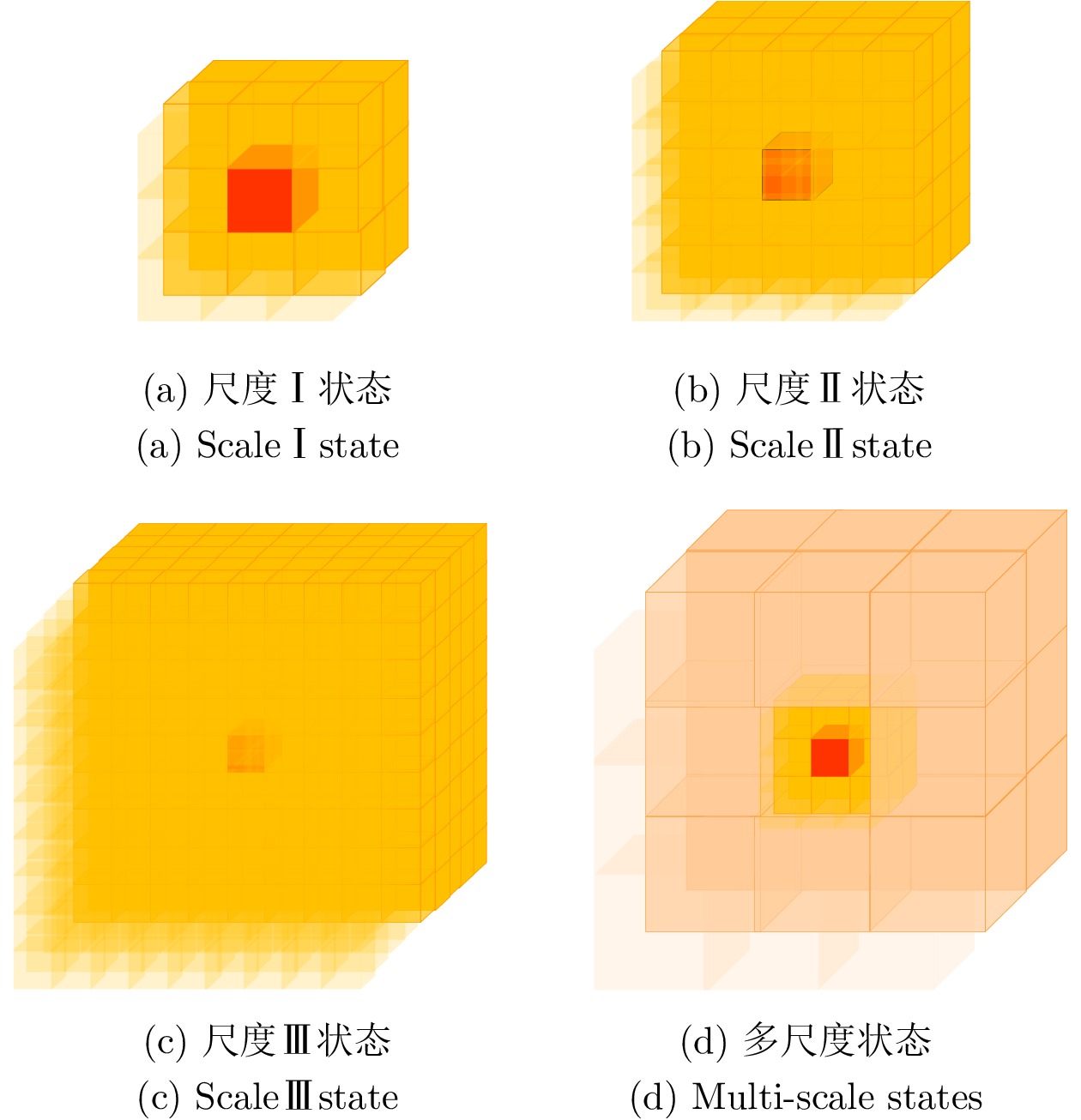

表 3 迭代训练后不同尺度输入下智能体导航性能
Table 3 Navigation performance of agents under different scale inputs after iterative training
成功率(%) 碰撞率(%) 失效率(%) 路径长度(m) 尺度I状态 89.61% 0.02% 10.37% 8.73 尺度II状态 88.25% 0.72% 11.03% 8.79 尺度III状态 0.51% 17.66% 81.83% 11.56 多尺度状态 97.19% 0.08% 2.74% 8.62
下载: 导出CSV

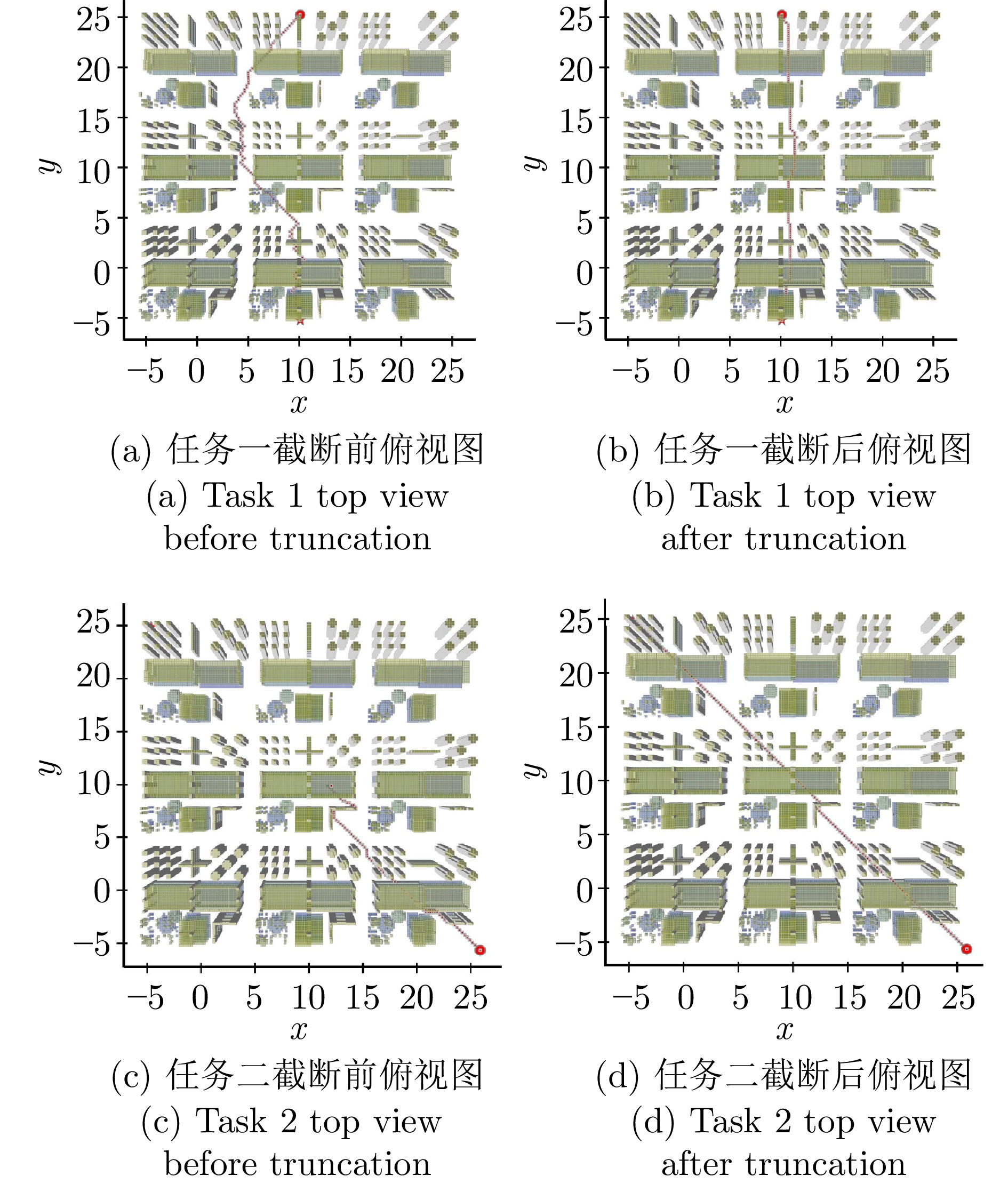

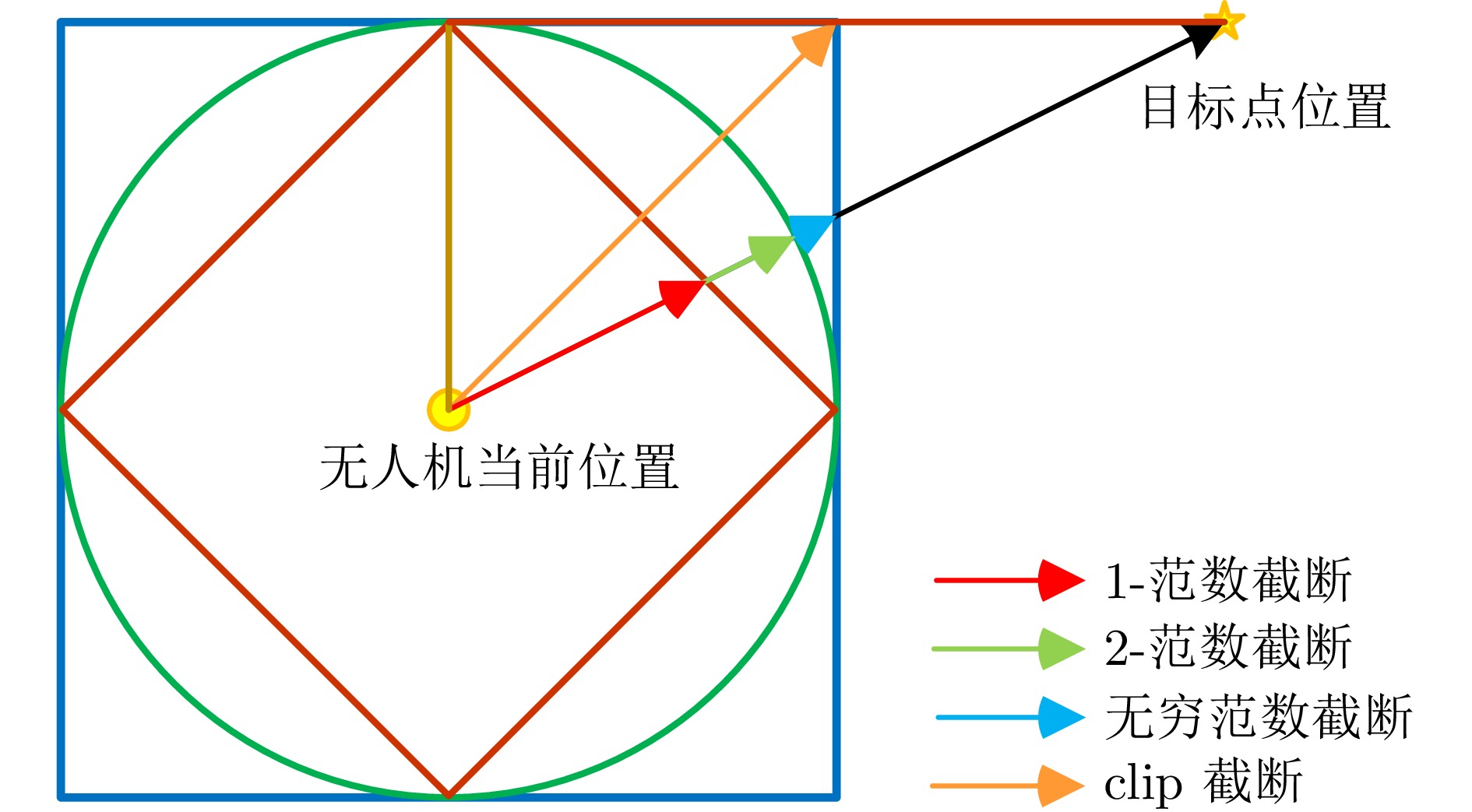

表 4 不同体素环境下的导航性能
Table 4 Navigation performance in different voxel environments
成功率(%) 碰撞率(%) 失效率(%) 路径长度(m) 训练环境 97.19% 0.08% 2.74% 8.62 测试环境(未采取截断操作) 77.20% 6.52% 16.29% 20.30 测试环境(采取截断操作) 96.93% 0.17% 2.89% 21.90
下载: 导出CSV
表 5 A*算法与DRL路径规划器导航情况对比
Table 5 Comparison of A* algorithm with DRL path planner navigation
任务一 任务二 任务三 任务四 任务直线距离 9.65米 10.84米 13.85米 35.07米 A*算法 11.68米 11.97米 导航碰撞 导航碰撞 DRL路径规划器 11.59米 13.39米 18.80米 40.26米
下载: 导出CSV
-
